निर्दिष्टीकरणहरू
Graphic Format Supported:BMP
आवेदन: लेजर काट्ने
दशा: नयाँ
Cutting Thickness:0.5-12mm
सीएनसी वा होइन: हो
शीतलक मोड: जल शीतलन
नियन्त्रण सफ्टवेयर: Ruida
उत्पत्तिको स्थान: अनहुई, चीन (मुख्यभूमि)
Model Number:LP-M1530F
प्रमाणीकरण: सीई, आईएसओ, एफडीए

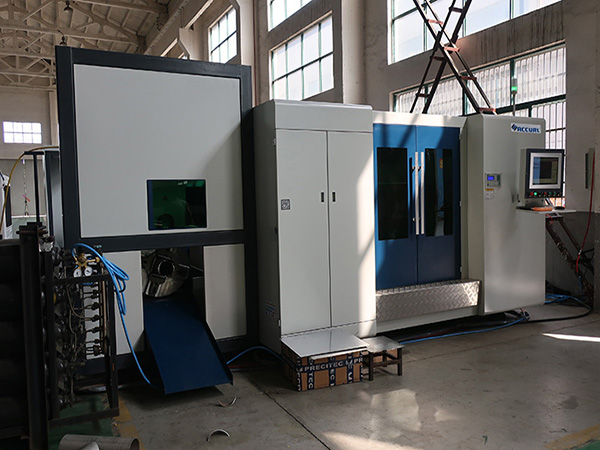

Name:Precision fiber cutting machine Laser cutter with High speed
Color:Blue and grey
Laser power:500W 1000W 1500W
Effective cutting range:6m
Maximum table load:3000KG
लेजर तरंगदैर्ध्य: 1070nm
बीम गुणस्तर: <0.373मार्ग
Power Ratings:Three-phase AC 380V 50Hz
Rated output power:500W
life span of pump:>100000
बिक्री पछि सेवा: विदेश सेवा सेवा गर्न उपलब्ध इन्जिनियरहरू
Supply Ability
फाइदा:
♦ laser optical system and accessories, stable and reliable
♦ Taiwan HIWIN Rails,Germany ATLANTA and Extension guide rollers and accessories, stable and reliable
♦ Efficient and stable program and control system, easy to learn with humanization, the format is compatible with a variety of CAD drawing, Intellinest with cost savings, automatic cutting path matching to save processing time;
♦ Product energy consumption less, using low cost; high stability, simple and convenient maintenance with low cost
♦ Without mould, flexible manufacturing, which can meet all kinds of special-shaped workpiece processing requirements
♦ High cutting efficiency, high cutting quality, no noise; High speed, high efficiency, cutting thin plate rate can amount to tens meters per minute; Cutting edge with good quality and small deformation, smooth appearance, beautiful;
♦ Japan YASKAWA servo motor, screw, guide rail, to ensure the machine efficiency and precision at the same time, greatly improving the stability and reliability of equipment operation;
नाम | Precision fiber cutting machine Laser cutter with High speed | |||
optical parameter | एकाइ | 500W/1000W/1500W | ||
operational mode | CW,QCW | |||
wavelength of the center radiation | nm | 1070-1080 | ||
standard power output | डब्ल्यू | 500 | ||
optical quality | Mm*mrad | 4 | ||
SPD speed | kHz | 5 | ||
ओप्टिकल फाइबर व्यास | μｍ | ≥50 | ||
output power stability (long-term) | % | ±2 | ||
power supply | VAC | 400-460 | ||
Power consumption (including supporting annex) | KW | 33 | ||
सामाग्री | मोटाई | सहायक ग्यास |
कार्बन स्टील | ＜12mm | ओक्सीजन |
खिया नलाग्ने | ＜6mm | नाइट्रोजन |
एल्युमीनियम | ＜2mm | नाइट्रोजन |
FAQ and contact
Q: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1) .What work table size you will need?
2).What work you will do?
Q: What's your payment terms? Delivery time and MOQ?
A: We accpet T/T(bank transfer), L/C, Paypal, Western union etc. Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 3-5 days after payment
MOQ: 1set
Q: If I bought a machine, how could you make it safe while shipping.
A: We have a professtional package suitable for oversea transpotation. Machine will be fixed well in the case.
Q: What's your quality control system?
A: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.
